Models: testo 875-1 (German company)

Brief introduction: the infrared thermal imager to the human eye cannot see infrared radiation energy is converted to electrical signals, and in a variety of different colors to show different temperature distribution but the image is displayed.

Equipment performance description:

1, to find abnormal temperature points, thus found the problems before the heat preservation engineering failure, identify potential problems of equipment or system.

2, good field imaging and analysis capabilities.

3, can be intuitive see the running equipment point of overtemperature and overtemperature reasons, in order to make a improvement method and emergency measures.

Advantages in:

High sensitivity < mk 80

Standard factory 32 ° Angle lens x23 °

Cold/hot automatic tracking function

Manual focusing

Temperature range from 20 to + 780 ℃

Instrument configuration:

Professional version of analysis software

SD memory card

USB cable

The host

Rechargeable lithium batteries

The tripod fittings

Dustproof, rugged instrument box

Technical parameters:

1, according to: 3.5 screen

2. Storage temperature: - 30 ~ + 60 ℃

3, the operation temperature: - 30 ~ + 40 ℃

4, the types of batteries: can quick rechargeable lithium battery, can field replacement.

5, battery use time: about 4 h

6, weight: 900 g

7, size: 152 x106x262mm

8, temperature range: 0-20 ~ + 100 ℃ ~ + 280 ℃ (can switch)

Accuracy: + / - 2 ℃, plus or minus 2% of the measured value.

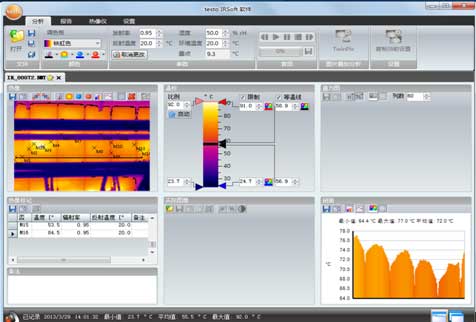

Image analysis:

Here is hebei guohua surging east plant cold ash hopper overtemperature analysis report
